RE-ENTERABLE ELASTOMERIC GEL, Shake‘N’Fill GENERAL PURPOSE, (150ml to 1Ltr)

£17.97 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

SIZE 150ml 250ml 500ml 1000ml

EsP – Electrical support Products Ltd

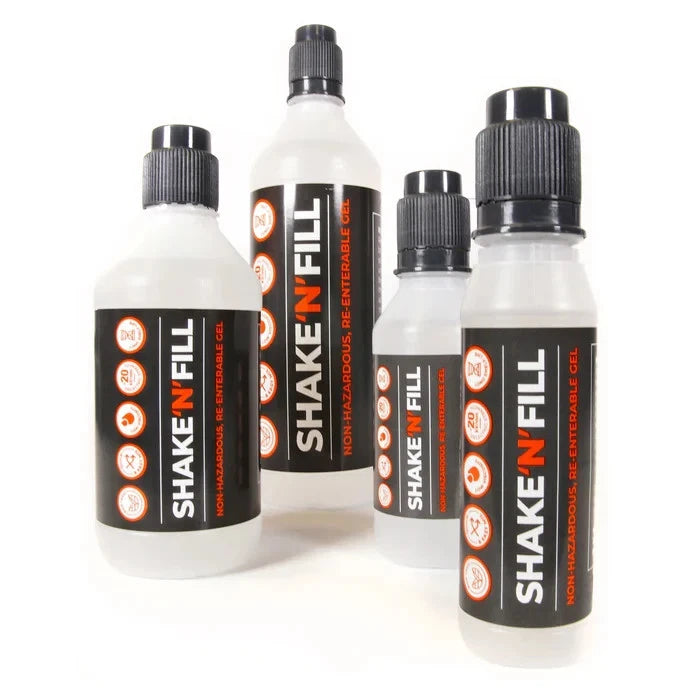

SHAKE`N`FILL RE-ENTERABLE ELASTOMERIC GEL, GENERAL PURPOSE

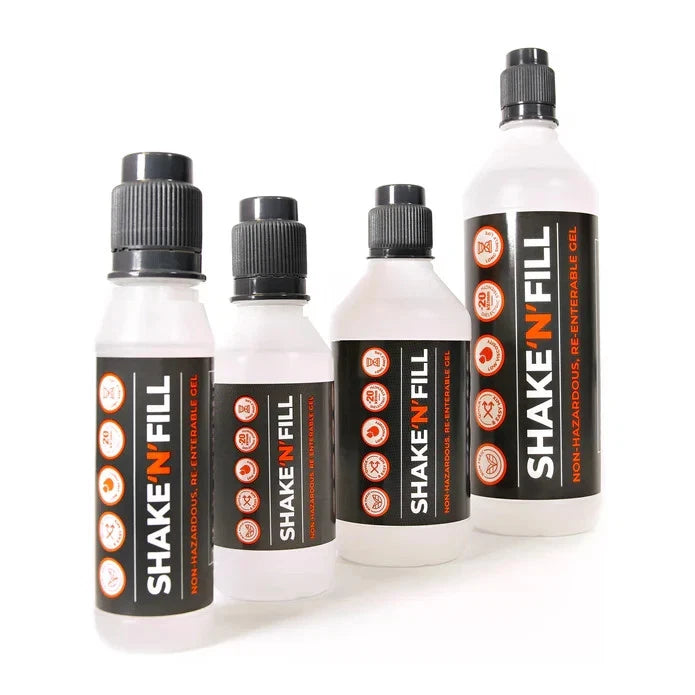

Sizes – 150ml, 250ml, 500ml & 1000ml.

Description
Shake‘N’Fill is a soft, re-enterable, clear general-purpose silicone elastomeric gel designed for use with electronic and electrical applications to protect against water, moisture, humidity, dust, vibrations and mechanical shock. Shake‘N’Fill is a low viscosity, 2-component system that is easily mixed within a unique bottle that holds the catalyst in a separate compartment within the lid. No more messing around mixing and stirring the components in a jug. Just Shake‘N’Fill.

Specifications
• Non-toxic and safe
• Quick & Easy to mix
• Fast in cross-linking (<10 min), without temperature increase
• Low viscosity
• Operating temperature: -50/+180°C
• Re-enterable
• Long shelf life
• Dielectric strength: >20 kV/mm

Applications

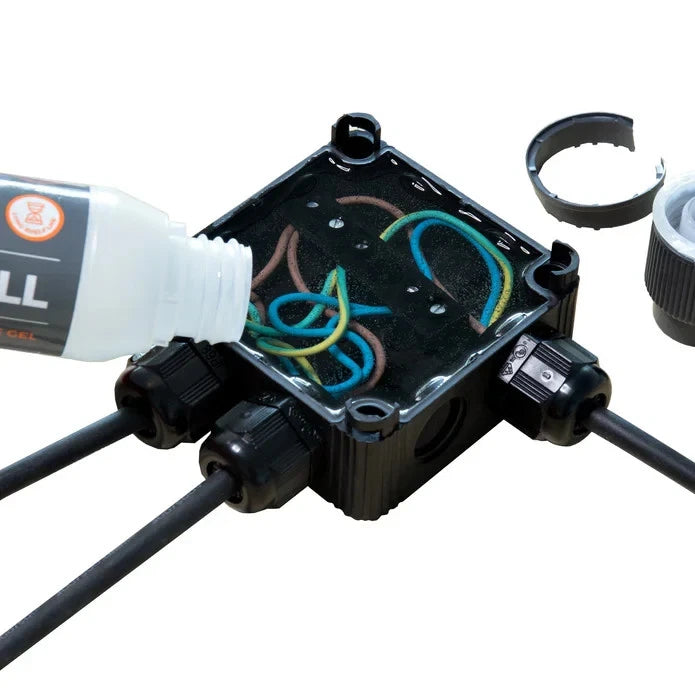

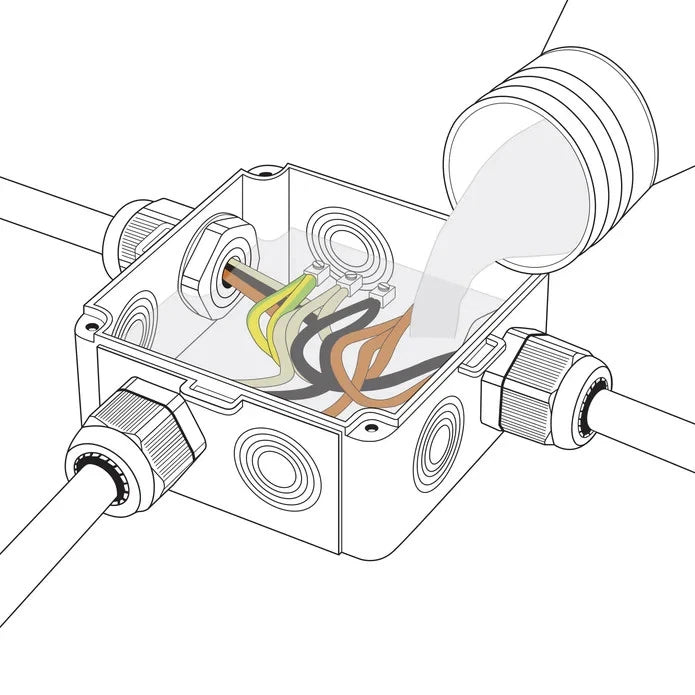

Filling & sealing junction boxes, electrical insulation connections up to 1 kV.

Material - Elastomeric Silicone.

Colour - Clear.

Adhesion	Fully cured Shake‘N’Fill gel exhibits good adhesion to most substrates such as: Aluminium, Stainless Steel, ABS, PCB Boards, Polycarbonate & Nylon 66.
Curing Time	Cross-links within 10 minutes. Full Cure: At 25 °C the full curing time is 1 hour. The curing times reduce with higher temperature.
Handling Time	Once the two components have been mixed by shaking the bottle, the handling time is between 3 & 5 minutes.
Electrical Properties	Dielectric strength: 20.52 kV/mm (CEI EN 60243-1). Volume Resistivity: 2.0E+15 Ω·cm (CEI 1523).
Cured Gel Properties	After 7 days cure at 23 ± 2 °C and 65% RH. Penetration (Cone Weight): 19.5/6.0 mm. Specific Gravity: Part A1 0.97. Min. Service Temp: −50 °C. Max. Service Temp: 180 °C.
Instructions	1) Remove the grey clip at the bottom of the cap. 2) Screw the cap until the internal seal breaks (≈ 2 full rotations). 3) Shake the bottle for at least 15 seconds. 4) Unscrew the cap to pour the gel.

Filling Guide

Type of WISKA COMBI Box	Required Shake‘N’Fill Gel (ml)
Combi 108 (Empty) fixed to a wall	200ml
Combi 206 (Empty) fixed to a wall	100ml
Combi 304 (Empty) fixed to a wall	180ml
Combi 308 (Empty) fixed to a wall	200ml
Combi 407 (Empty) fixed to a wall	320ml
Combi 607 (Empty) fixed to a wall	510ml
Combi 1010 (Empty) fixed to a wall	1010ml
Combi 1210 (Empty) fixed to a wall	1250ml
Combi 1610 (Empty) fixed to a wall	2500ml

Product Ref.	Size (ml)	Usage
Shake'N'Fill 150	150	Seals 1 x 308 WISKA Box
Shake'N'Fill 250	250	Seals 2 x 308 WISKA Box
Shake'N'Fill 500	500	Seals 4 x 308 WISKA Box
Shake'N'Fill 1000	1000	Seals 8 x 308 WISKA Box

A perfect addition to your range of electrical accessories.
