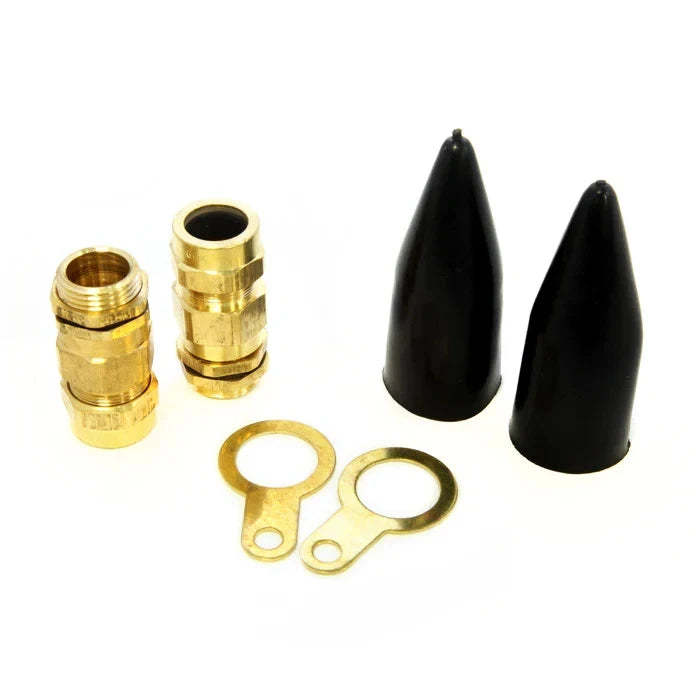

CMP CABLE GLAND CW20, 25 & 32 (pack of 2 glands) - Industrial Gland Kit

£9.99 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

GLAND SIZE CW20 CW25 CW32

EsP – Electrical support Products Ltd

CMP CABLE GLAND CW20, CW25 & CW32 Industrial Gland Kit (pack of 2 glands)

The CW Industrial Gland Kit is a versatile brass cable gland kit for secure termination of steel wire armoured cable (SWA cable) in indoor environments. This CW gland gives you mechanical cable retention and armour wire termination for reliable retention and electrical continuity in all your electrical panels and machinery installations.

Features

· Brass Gland: High quality brass gland for excellent corrosion resistance.

· Mechanical Cable Retention: Robust grip on the outer sheath to prevent pull-out.

· Armour Wire Termination & Electrical Continuity: Integrated system with detachable armour cone and earth tag for direct earth path.

· Environmental Seal (IP54): Compression design for dust and moisture seal for light outdoor use.

· PVC Shroud & Accessories: Includes PVC shroud, brass locknut and all necessary accessories for quick installation.

· Suitable for SWA Cable & Steel Wire Armoured: For rubber sheathed cables, armoured cable and wire armoured cable SWA.

· Detachable Armour Cone: Aligns with your cable’s outer cable sheath for secure seating.

· Competitive Pricing & VAT: Prices exclude VAT—see our VAT page for details.

· Fast Delivery: Order today for same day dispatch

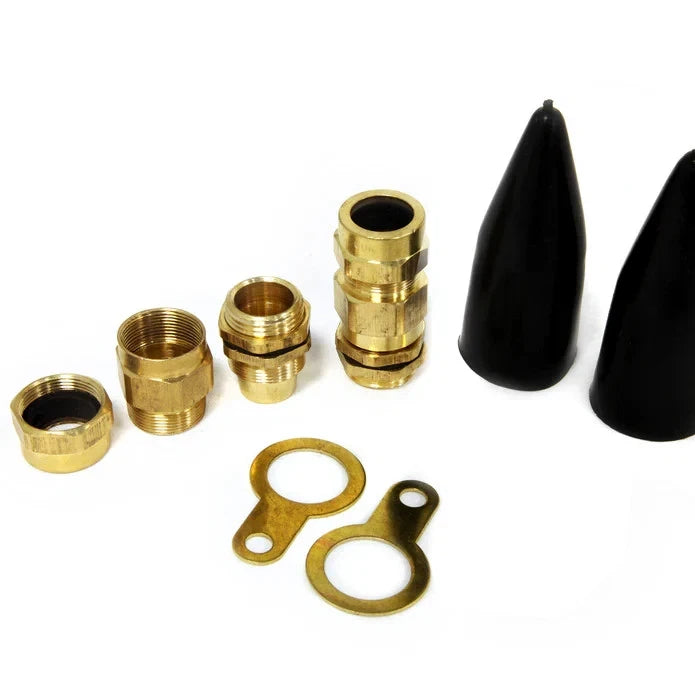

Kit Contents:

. 2 x CW Brass Cable Glands

. 2 x Brass Locknuts

. 2 x Detachable Armour Cones

. 2 x PVC Shrouds

. Installation seals and washers

Technical Data

Parameter			Value
Type			CW
Design Specification			BS 6121 : Part I
Gland Material			Brass
Ingress Protection			IP65
Finish			Plain Brass
Seal Material			Thermoplastic Elastomer
Cable Type			Steel Wire Armour
Armour Clamping			4 Part Armour Lock
Sealing Technique			Compression Type
Sealing Area			Outer Sheath
Operating Temp.			-40 – 80°C

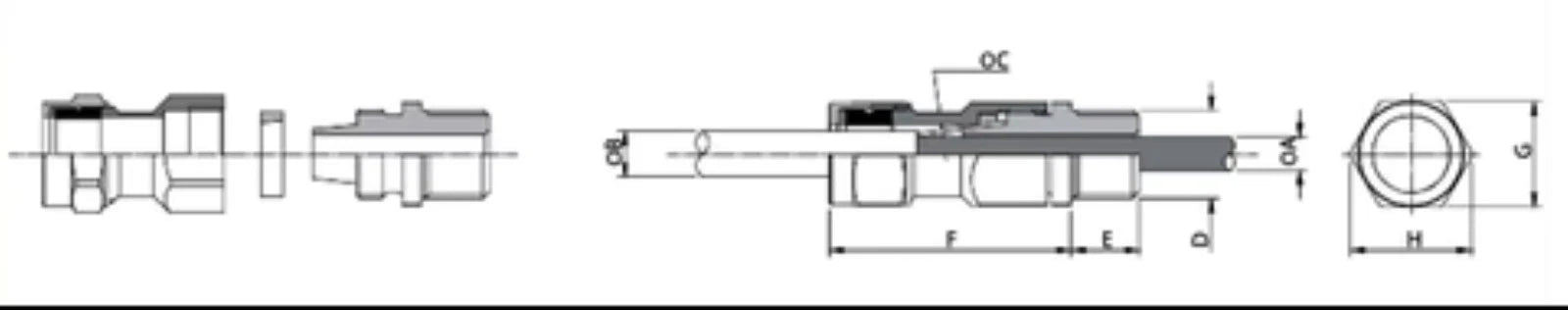

Gland Size	20s	20		25	32
Number in pack	2	2		2	2
Cable Range (mm)	8.0 – 15.8	11.7 – 20.8		17.0 – 27.2	23.5 – 33.5
Entry Thread – D (mm)	M20 x 1.5	M20 x 1.5		M25 x 1.5	M32 x 1.5
Entry Thread – E (mm)	8 - 10	8 - 10		8 - 10	8 - 10
Under Armour ø (mm)	11.6	13.9		19.9	26.2
Armour ø (mm)	0.9	0.9/1.25		1.25/1.6	1.6/2.0
Approx. Length from Shoulder – F (mm)	46	46		51	56
Hexagon Across Flats – G (mm)	25.7	30.5		37.6	47.3
Hexagon Across Corners – H (mm)	29.2	34.0		42.2	53.6
