CET (Central Earth Termination Glands) with Jubilee Clip Pack of 5

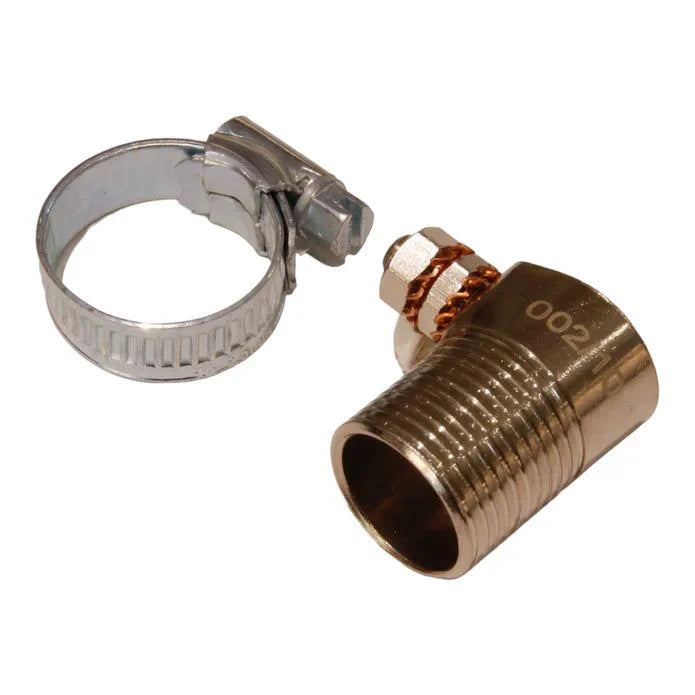

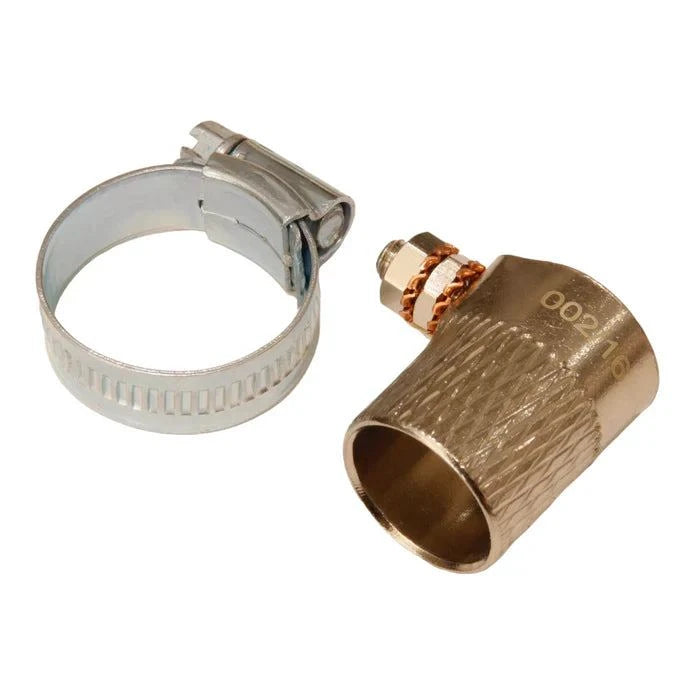

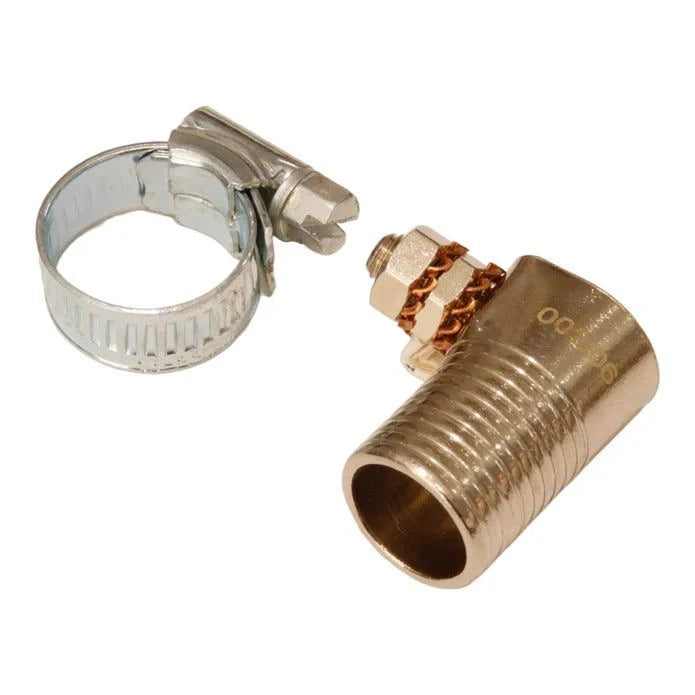

CET (Central Earth Termination Glands) with Jubilee Clip

CET Glands, or Central earth termination glands, are specialised components used in earthing systems designed for the secure termination and bonding of SWA (Steel wired armour) cables. These glands are particularly useful when space is limited, such as in street lighting and the traffic control industry. CET glands provide a reliable solution for ensuring proper earthing in these confined environments, thereby enhancing the safety and performance of electrical installations.

Key Features:

. Crafted from high-quality solid brass with nickel and tin plating.

. User-friendly and straight forward to operate.

. Robust and durable design for long lasting performance.

. Clear markings on the CET to identify the sized gland.

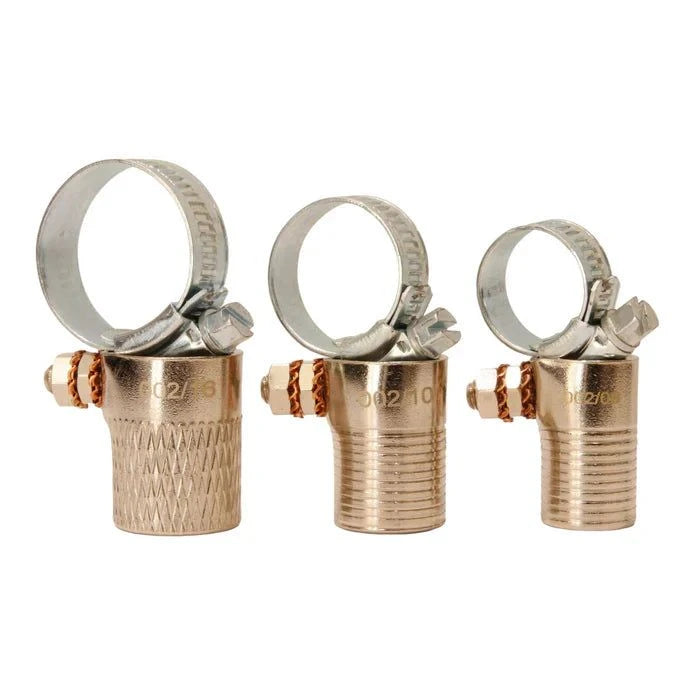

Kit Components:

. CET 002/6 = 1 x CET Gland & 1 x Jubilee Clip (14-22mm)

. CET 002/10 = 1 x CET Gland & 1 x Jubilee Clip (17-25mm)

. CET 002/16 = 1 x CET Gland & 1 x Jubilee Clip (22-30mm)

Selection chart:

Cable size     2 Copper cores        2 Copper cores     3 Copper Cores               4 Copper cores

(mm2)           (Circular)                  (Segmented)         (Segmented)                   (Circular)

2.5mm          CET – 002/6            CET – 002/6          CET – 002/6                   CET – 002/6

4.0mm          CET – 002/6            CET – 002/6          CET – 002/6                   CET – 002/6

6.0mm          CET – 002/6            CET – 002/6          CET – 002/6                   CET – 002/6

10mm           CET – 002/10          CET – 002/10        CET – 002/14                 CET – 002/14

16mm           CET – 002/14          CET – 002/14        CET – 002/14

Suitable for electrical insulation.
Excellent electrical, mechanical and chemical performance.
Ideal for Electrical, Electronic, Automotive and General-Purpose uses.
