Industrial Gland Kit – BW20, 20s, 25 & 32 (pack of 2 glands)

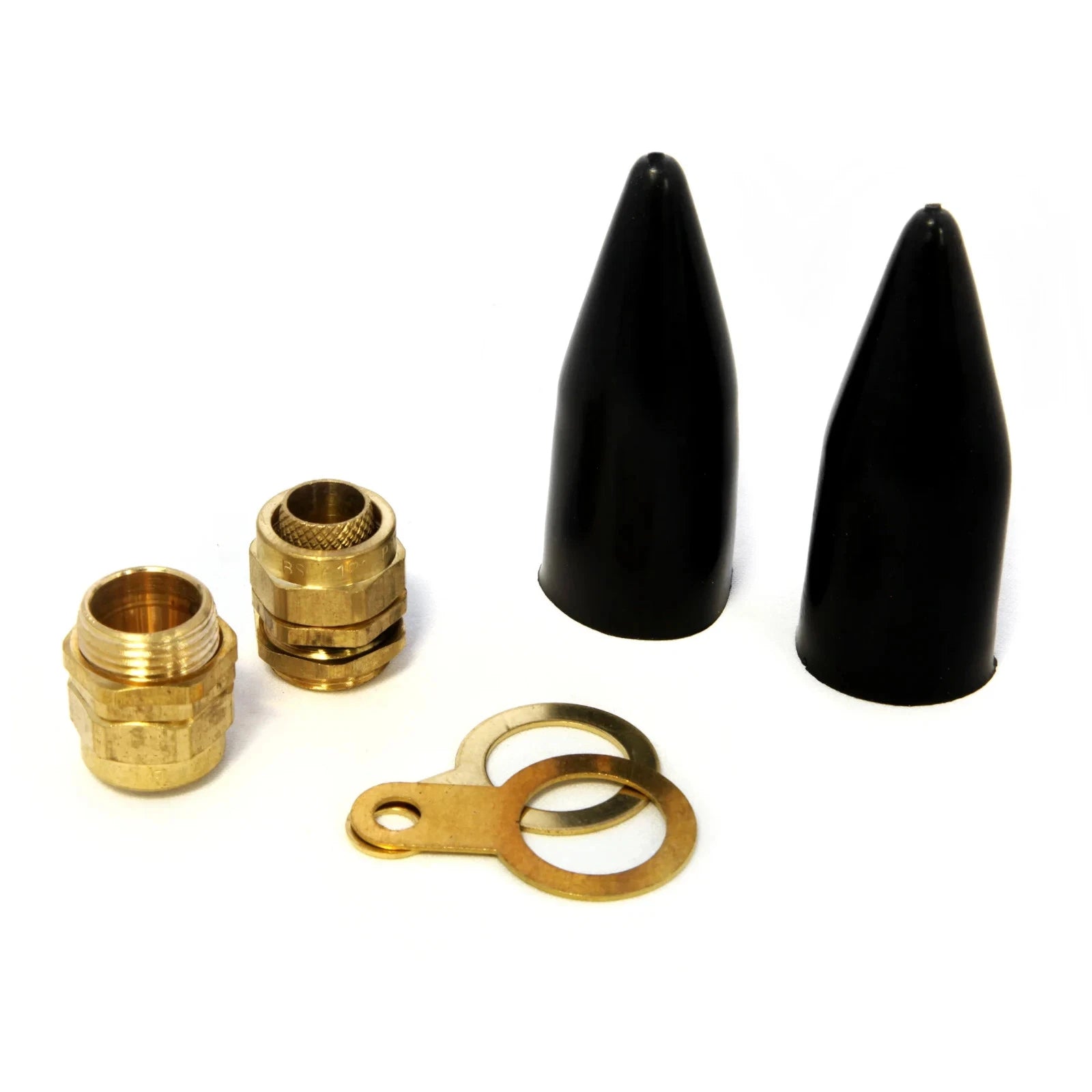

The BW Industrial Gland Kit is an economy brass SWA cable gland kit designed for secure cable management in industrial environments. Suitable for indoor installations and with protective measures, light outdoor applications. Made from high quality brass, it’s corrosion resistant and comes as a complete cable gland pack—so you get a brass cable glands solution at an economy price.
Features
- Mechanical Cable Retention: Grip under vibration or strain.
- Armour Wire Termination: Reliable armour wire termination for full electrical continuity.
- Electrical Continuity: Earth tag gives direct earth connection in electrical panels.
- Environmental Seal: Compression type seal against dust and moisture.
- PVC Shroud: Low smoke, fume retardant PVC shroud for safe installation.
- Brass Cable Compatibility: Interfaces with brass cable armour for metal-to-metal bonding.
- High Quality Brass Construction: Premium brass for long life corrosion resistance.
- Armoured Cable & SWA Cable: Suitable for all armoured cable types.
- Complete Gland Kit Pack: Glands, locknuts, earth tags and shrouds included for quick fit.
Technical Data
|
Parameter |
Value |
|
|||
|
Type |
BW |
|
|||
|
Design Specification |
BS 6121 : Part I |
|
|||
|
Gland Material |
Brass |
|
|||
|
Ingress Protection |
IP54 |
|
|||
|
Finish |
Brass |
|
|||
|
Cable Type |
Steel Wire Armour |
|
|||
|
Armour Clamping |
Cable Retention |
|
|||
|
Sealing Technique |
Compression Type |
|
|||
|
Operating Temp. |
-40 – 80°C |
|
|||
|
|
|
|
|||
|
Gland Size |
20s |
20 |
25 |
32 |
|
|
Number in pack |
2 |
2 |
2 |
2 |
|
|
Cable Range (mm) |
8.0 – 15.8 |
11.7 – 20.8 |
17.0 – 27.2 |
23.5 – 33.5 |
|
|

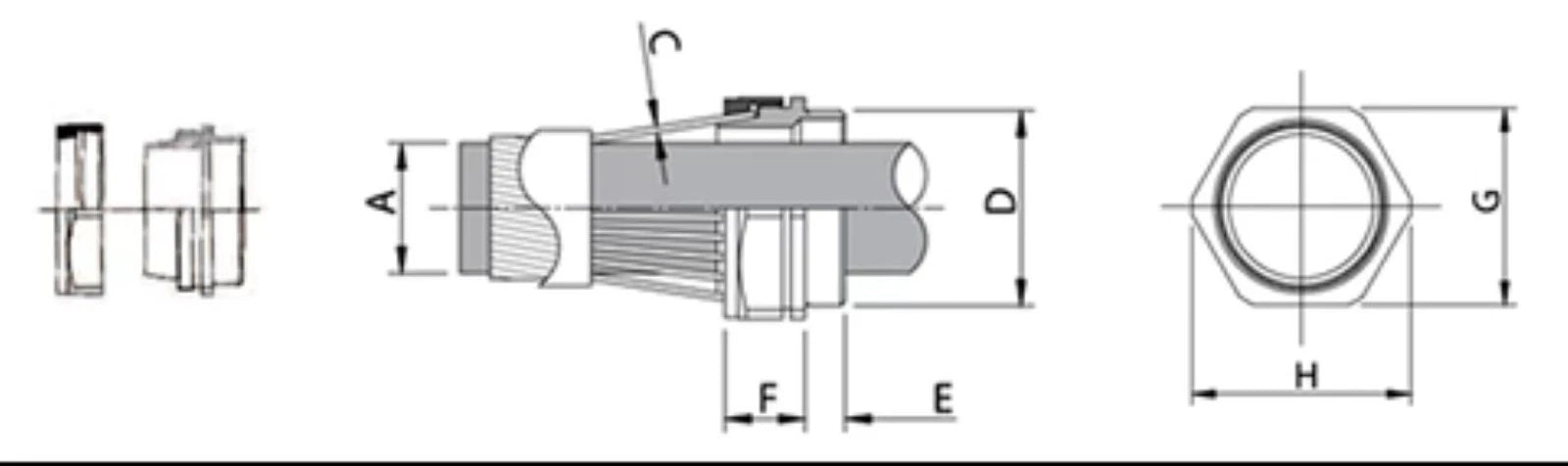

Entry Thread – D (mm) |
M20 x 1.5 |
M20 x 1.5 |
M25 x 1.5 |
M32 x 1.5 |
|
|
Entry Thread – E (mm) |
10 |
10 |
10 |
10 |
|
|
Under Armour ø (mm) |
11.6 |
13.9 |
19.9 |
26.2 |
|
|
Armour ø (mm) |
0.9 |
0.9/1.25 |
1.25/1.6 |
1.6/2.0 |
|
|
Approx. Length from Shoulder – F (mm) |
24 |
25 |
26 |
28 |
|
|
Hexagon Across Flats – G (mm) |
22.0 |
27.0 |
37.6 |
47.3 |
|
|
Hexagon Across Corners – H (mm) |
24.9 |
30.5 |
42.2 |
53.6 |
|
