A2 32PK BRASS Gland Kit NON-SWA – 20-26.4mm ø Range (pack of 2 glands)

EsP – Electrical support Products Ltd

NON-SWA BRASS Gland Kit – A2/32PK 20-26.4mm ø Range (pack of 2 glands)

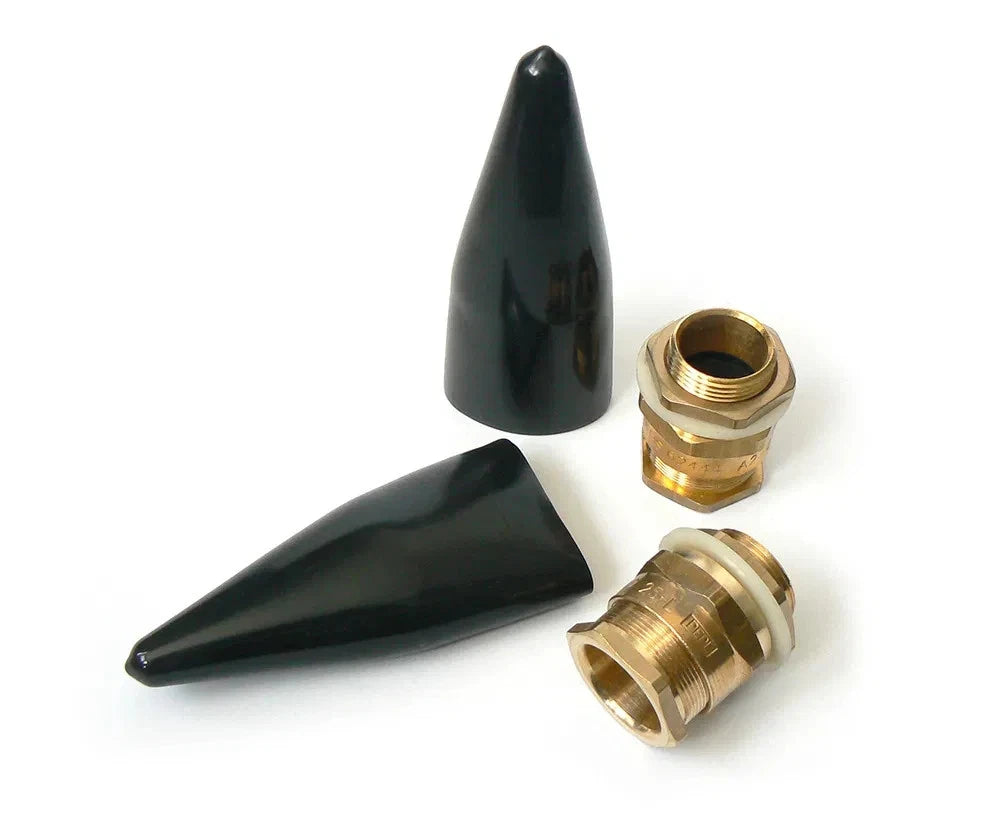

The Termtech A232PACK is an A2 type brass cable gland pack, designed for indoor and outdoor use with unarmoured cables: 19.00 – 26.40mm range. Along with 2 brass glands, the pack comes complete with shrouds, washers and locknuts. The gland pack boasts an IP66 rating and the outer seal grips the sheath to achieve a weatherproof seal.

Thread: M32 x 10mm

Thread Size: M32

Cable Acceptance: 20-26.4mmØ

Manufactured toBS EN 62444:2013 .

Operating Temperature: -20°C to +80°C.

Offering an IP66 rating.

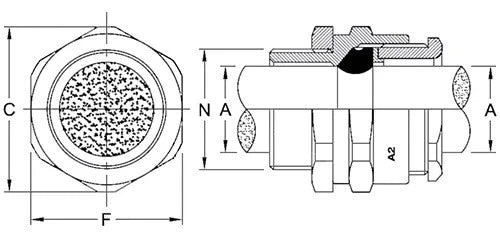

 Thread Ø (N): 32mm

Thread Length (D): 12mm

 A Min: 20mm

A Max: 26.4mm

Gland Body A/F (F): 40mm

Gland Body A/C (C): 44.4mm

Compression Nut A/F (F): 38mm

Compression Nut A/C (C): 42.2mmpprox Assembled Length (E): 27mm
