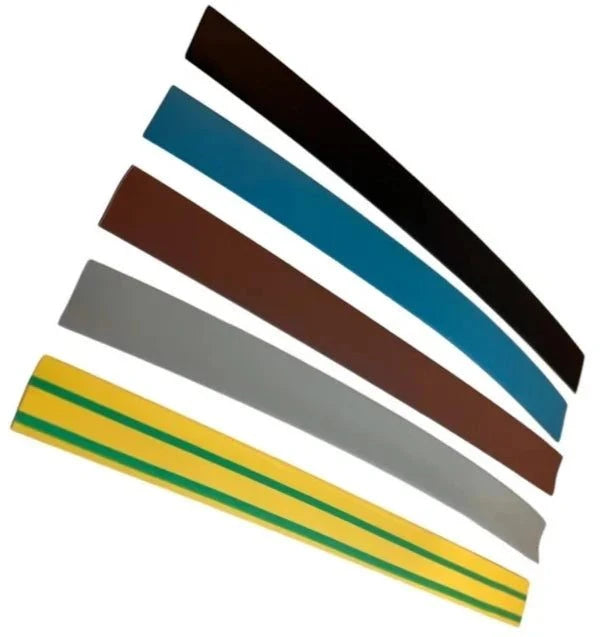

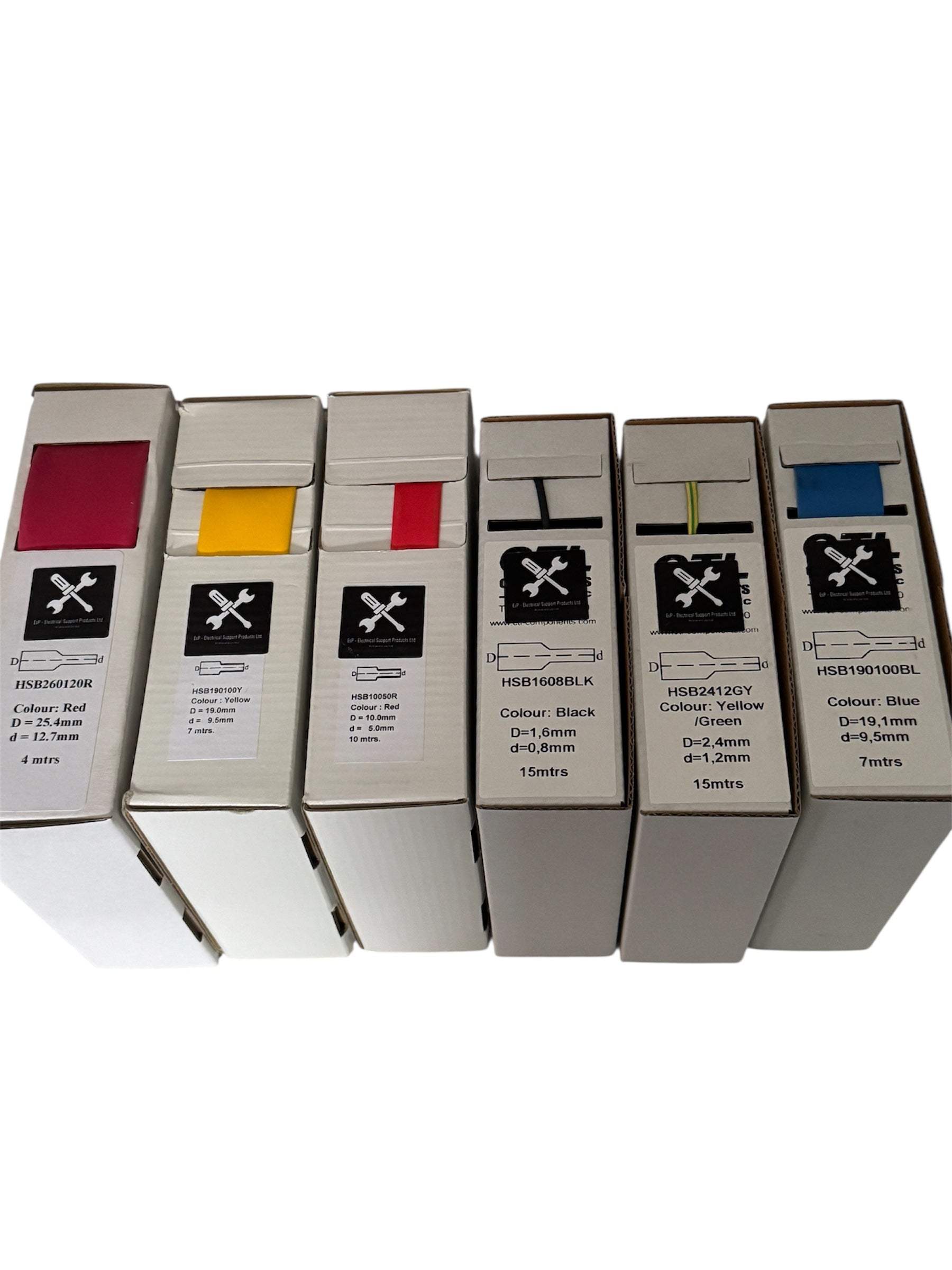

2:1 ratio Heat shrink Mini Box Dispenser, various sizes, lengths and c

EsP – Electrical support Products Ltd

2:1 ratio Heat shrink Mini Box Dispenser, various sizes, lengths and colours

Please Note: Sizes Are PRE Shrink Size @ 2:1 Shrink Ratio (Eg.6.4mm will shrink to 3.2mm etc..)

Available in sizes:

1.2mm – 0.6mm 3.2mm – 1.6mm 9.5mm – 4.7mm

1.6mm – 0.8mm 4.8mm – 2.4mm 19.1mm – 9.5mm

2.4mm – 1.2mm 6.4mm – 3.2mm 25.4mm – 12.7mm

. Flame retardant and Halogen free. cross linked polyolefin

. UL224 approved

. Shrink temperature +90°c - +100°c

. Working temperature -55°c - +125°c

. Voltage 600v

. Tensile strength: 10.4Mpa (after aging 7.3)

. Dielectric strength: 15kv/mn

. Small sizes supplied round, larger types supplied flat.

Suitable for electrical insulation, wire bundling, colour coding, mechanical protection, wire/cable joints and repairs etc.
Good electrical, mechanical and chemical performance.
Ideal for Hobbyists and Model Makers, Electrical, Electronic, Automotive and General-Purpose uses.
